BlockingP2PCommunicationEvent Class Reference

#include <BlockingP2PCommunicationEvent.hpp>

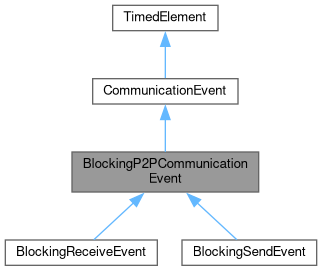

Inheritance diagram for BlockingP2PCommunicationEvent:

Collaboration diagram for BlockingP2PCommunicationEvent:

Public Member Functions
otf2::definition::location *	getLocation () const override
otf2::chrono::duration	getStartTime () const override
otf2::chrono::duration	getEndTime () const override
types::communicator *	getCommunicator () const override
Public Member Functions inherited from CommunicationEvent
virtual otf2::definition::location *	getLocation () const =0
otf2::chrono::duration	getStartTime () const override=0
otf2::chrono::duration	getEndTime () const override=0
virtual types::communicator *	getCommunicator () const =0
virtual CommunicationKind	getKind () const =0
Public Member Functions inherited from TimedElement
virtual types::TraceTime	getStartTime () const =0
	Returns the start time of the current object. More...
virtual types::TraceTime	getEndTime () const =0
	Returns the end time of the current object. More...
virtual types::TraceTime	getDuration () const
	Returns the duration of the current object. More...

Protected Member Functions
	BlockingP2PCommunicationEvent (const otf2::chrono::duration &timepoint, otf2::definition::location *location, types::communicator *communicator)

Protected Attributes
otf2::chrono::duration	timepoint
otf2::definition::location *	location
types::communicator *	communicator

Detailed Description

Class representing blocking events in point to point communications like MPI_SSEND, MPI_SRECEIVE.

This class bundles common functionality for these types of events and should be used as a base class and not instantiated directly.

Definition at line 43 of file BlockingP2PCommunicationEvent.hpp.

Constructor & Destructor Documentation

BlockingP2PCommunicationEvent()

BlockingP2PCommunicationEvent::BlockingP2PCommunicationEvent ( const otf2::chrono::duration &  timepoint, otf2::definition::location *  location, types::communicator *  communicator  )

protected

Creates a new instance of the abstract BlockingP2PCommunicationEvent class.

Parameters

timepoint	Timepoint of the event
location	Location of the event
communicator	Communicator the event took place in

Definition at line 22 of file BlockingP2PCommunicationEvent.cpp.

Member Function Documentation

getCommunicator()

types::communicator * BlockingP2PCommunicationEvent::getCommunicator ( ) const

overridevirtual

Gets the communicator the recorded event took place in.

Returns

Communicator of the event

Implements CommunicationEvent.

Definition at line 39 of file BlockingP2PCommunicationEvent.cpp.

getEndTime()

otf2::chrono::duration BlockingP2PCommunicationEvent::getEndTime ( ) const

overridevirtual

Gets the end time of the recorded even. The time is relative to the star time of the program.

Returns

End time of the recorded event

Implements CommunicationEvent.

Definition at line 35 of file BlockingP2PCommunicationEvent.cpp.

getLocation()

otf2::definition::location * BlockingP2PCommunicationEvent::getLocation ( ) const

overridevirtual

Gets the location of the recorded event.

Returns

Location of the recorded event

Implements CommunicationEvent.

Definition at line 31 of file BlockingP2PCommunicationEvent.cpp.

getStartTime()

otf2::chrono::duration BlockingP2PCommunicationEvent::getStartTime ( ) const

overridevirtual

Gets the start time of the recorded event. The time is relative to the star time of the program.

Returns

Start time of the recorded event

Implements CommunicationEvent.

Definition at line 27 of file BlockingP2PCommunicationEvent.cpp.

Member Data Documentation

communicator

types::communicator* BlockingP2PCommunicationEvent::communicator

protected

The communicator of the operation

Definition at line 58 of file BlockingP2PCommunicationEvent.hpp.

location

otf2::definition::location* BlockingP2PCommunicationEvent::location

protected

The location of the event

Definition at line 57 of file BlockingP2PCommunicationEvent.hpp.

timepoint

otf2::chrono::duration BlockingP2PCommunicationEvent::timepoint

protected

The time when the event occured

Definition at line 56 of file BlockingP2PCommunicationEvent.hpp.

---

The documentation for this class was generated from the following files:

• src/models/communication/BlockingP2PCommunicationEvent.hpp
• src/models/communication/BlockingP2PCommunicationEvent.cpp
