NonBlockingP2PCommunicationEvent Class Reference

Class representing non blocking events in point to point communications like MPI_ISEND, MPI_IRECEIVE. More...

#include <NonBlockingP2PCommunicationEvent.hpp>

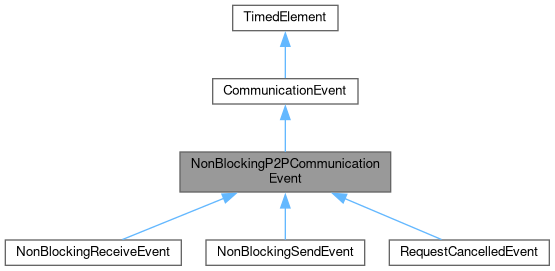

Inheritance diagram for NonBlockingP2PCommunicationEvent:

Collaboration diagram for NonBlockingP2PCommunicationEvent:

Public Member Functions
otf2::definition::location *	getLocation () const override
otf2::chrono::duration	getStartTime () const override
otf2::chrono::duration	getEndTime () const override
types::communicator *	getCommunicator () const override
Public Member Functions inherited from CommunicationEvent
virtual otf2::definition::location *	getLocation () const =0
otf2::chrono::duration	getStartTime () const override=0
otf2::chrono::duration	getEndTime () const override=0
virtual types::communicator *	getCommunicator () const =0
virtual CommunicationKind	getKind () const =0
Public Member Functions inherited from TimedElement
virtual types::TraceTime	getStartTime () const =0
	Returns the start time of the current object. More...
virtual types::TraceTime	getEndTime () const =0
	Returns the end time of the current object. More...
virtual types::TraceTime	getDuration () const
	Returns the duration of the current object. More...

Protected Member Functions
	NonBlockingP2PCommunicationEvent (const otf2::chrono::duration &start, const otf2::chrono::duration &end, otf2::definition::location *location, types::communicator *communicator)

Protected Attributes
otf2::chrono::duration	start
otf2::chrono::duration	end
otf2::definition::location *	location
types::communicator *	communicator

Detailed Description

Class representing non blocking events in point to point communications like MPI_ISEND, MPI_IRECEIVE.

This class bundles common functionality for these types of events and should be used as a base class and not instantiated directly.

Definition at line 33 of file NonBlockingP2PCommunicationEvent.hpp.

Constructor & Destructor Documentation

NonBlockingP2PCommunicationEvent()

NonBlockingP2PCommunicationEvent::NonBlockingP2PCommunicationEvent ( const otf2::chrono::duration &  start, const otf2::chrono::duration &  end, otf2::definition::location *  location, types::communicator *  communicator  )

protected

Creates a new instance of the abstract NonBlockingP2PCommunicationEvent class.

Parameters

start	Start time of the event
end	End time of the event
location	Location of the event
communicator	Communicator the event took place in

Definition at line 23 of file NonBlockingP2PCommunicationEvent.cpp.

Member Function Documentation

getCommunicator()

types::communicator * NonBlockingP2PCommunicationEvent::getCommunicator ( ) const

overridevirtual

Gets the communicator the recorded event took place in.

Returns

Communicator of the event

Implements CommunicationEvent.

Definition at line 41 of file NonBlockingP2PCommunicationEvent.cpp.

getEndTime()

otf2::chrono::duration NonBlockingP2PCommunicationEvent::getEndTime ( ) const

overridevirtual

Gets the end time of the recorded even. The time is relative to the star time of the program.

Returns

End time of the recorded event

Implements CommunicationEvent.

Definition at line 37 of file NonBlockingP2PCommunicationEvent.cpp.

getLocation()

otf2::definition::location * NonBlockingP2PCommunicationEvent::getLocation ( ) const

overridevirtual

Gets the location of the recorded event.

Returns

Location of the recorded event

Implements CommunicationEvent.

Definition at line 29 of file NonBlockingP2PCommunicationEvent.cpp.

getStartTime()

otf2::chrono::duration NonBlockingP2PCommunicationEvent::getStartTime ( ) const

overridevirtual

Gets the start time of the recorded event. The time is relative to the star time of the program.

Returns

Start time of the recorded event

Implements CommunicationEvent.

Definition at line 33 of file NonBlockingP2PCommunicationEvent.cpp.

Member Data Documentation

communicator

types::communicator* NonBlockingP2PCommunicationEvent::communicator

protected

The communicator of the operation

Definition at line 49 of file NonBlockingP2PCommunicationEvent.hpp.

end

otf2::chrono::duration NonBlockingP2PCommunicationEvent::end

protected

The time when the event ended

Definition at line 47 of file NonBlockingP2PCommunicationEvent.hpp.

location

otf2::definition::location* NonBlockingP2PCommunicationEvent::location

protected

The location of the event

Definition at line 48 of file NonBlockingP2PCommunicationEvent.hpp.

start

otf2::chrono::duration NonBlockingP2PCommunicationEvent::start

protected

The time when the event started

Definition at line 46 of file NonBlockingP2PCommunicationEvent.hpp.

---

The documentation for this class was generated from the following files:

• src/models/communication/NonBlockingP2PCommunicationEvent.hpp
• src/models/communication/NonBlockingP2PCommunicationEvent.cpp
